กล้องจุลทรรศน์ชนิดสเตอริโอ สำหรับงานวิจัย ยี่ห้อ Leica รุ่น M125C, M165C, M205C และ M205A

กล้องจุลทรรศน์ ยี่ห้อ Leica รุ่น Leica M125 C

มีการซุมแบบเข้ารหัสและออปติกแบบพิเศษ เหมาสำหรับงบประมาณขนาดกลาง ที่ผสมความละเอียดและความชัดลึกที่เหมาะสมเข้ากับ iris diaphragm คู่ในตัว

กล้องจุลทรรศน์ ยี่ห้อ Leica รุ่น Leica M165 C

เพิ่มการเข้าถึงตัวอย่างที่หลากหลายมากขึ้น

กล้องจุลทรรศน์ ยี่ห้อ Leica รุ่น Leica M205 C

เป็นกล้องจุลทรรศน์ทีใช้สิทธิบัตร FusionOptics และเป็นเครื่องแรกของโลกที่มีความละเอียดทางแสงที่ 0.952 ไมโครเมตร

และกล้องจุลทรรศน์ ยี่ห้อ Leica รุ่น M205 A

เป็นกล้องจุลทรรศน์แบบสเตอริโอระบบอัตโนมัติ เต็มรูปแบบ โดยปรับปรุงขั้นตอนการทำงานประจำวันของคุณ  โดยคุณสามารถควบคุมผ่านชุด Smart touch ผ่านโปรแกรม LASX (Leica Application Suite X) โดยให้คุณทำงานแบบแฮนด์ฟรีได้เกือบทั้งหมด

Your goal: high-quality images that allow measurements and can be accurately repeated with minimal effort. The Leica coded stereo microscopes help you to pave the way to correct results.

The clever way to reproduce results

Image coding is the smart way to reproduce settings for easy documentation and consistent reporting. The microscope encoding transmits both the magnification and the position of the iris diaphragm in real time to the software.

A scale bar is superimposed on the image and adjusted with changing magnification. When you store an image, key system parameters are saved with it.

Easily recall them at any time

Leica Application Suite X software
Leica Application Suite X software

Precision in results relies on precision in optics

Reproducing results is important, especially if the images show the details that are essential. Rich in detail and contrast, undistorted colors combined with true 3D-impression yield superlative image quality. Take advantage of the ultimate optical capability:

Application image taken with the Leica M205 C
Application image taken with the Leica M205 C
Product and operator M125 C und Led5000

Tailored solution – for those who demand more

Specific tasks need individual solutions: configure your microscope system to suit your application, not the other way around.  With a Leica M-series stereo microscope you can choose from a comprehensive range of accessories to adapt your microscope to your application,  whether it is in materials testing or life science research.

The workhorse Leica M125 C

Don’t accept compromises: With a coded zoom and apochromatic optics, the Leica M125 C offers high-end quality for mid-range budgets. Combining optimal resolution and depth of field with the integrated double iris diaphragm.

Typical applications

Leica M125 C With Monitor and Flexacam i5
Leica M125 C With Monitor and Flexacam i5

The Performer Leica M165 C

Do you have to perform a wide variety of tasks but don’t want to constantly change the objective or even switch the microscope? Offering a large zoom and magnification range the Leica M165 C allows you manage all different kind of samples.

Typical applications

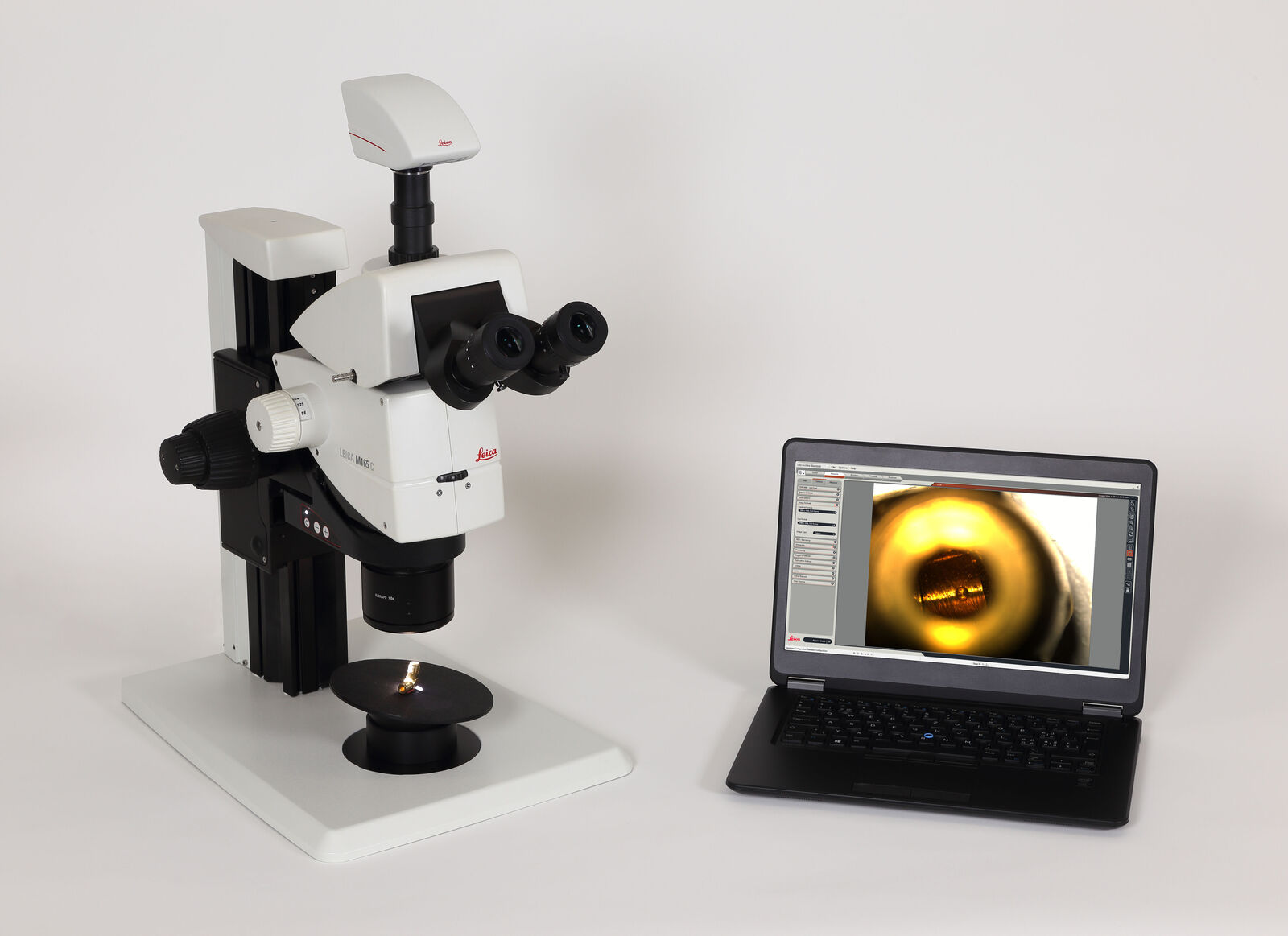

Leica M165 C with DMC4500 and laptop
Leica M165 C with DMC4500 and laptop

The high-tech machine Leica M205 C with FusionOptics

Imagine not having to choose between high resolution or better depth of field, but to have both! The revolutionary FusionOptics technology makes it possible and provides you an ideal 3D image to see even the smallest details.

The Leica M205 C is the world’s first stereo microscope to achieve an optical resolution of 0.952 µm.

Leica M205 C stereo microscope
Leica M205 C stereo microscope

Use your brain: Exclusive FusionOptics for the best of both worlds

What is FusionOptics? Quite simply, it is having the best of both worlds.

A stereo microscope with FusionOptics has one light beam path that delivers an image with the highest possible resolution, while the other provides an image with maximum depth of field.  The human brain merges the best information from both images into one clear, crisp 3D-image. Now you can visualize even the finest details of your specimen.

FusionOptics makes it possible to have both superb resolution and maximum depth of field providing picture-perfect 3D-representations of your specimens.

Learn more about FusionOptics on Leica Science Lab.

Only for models of the M205 range.

Without FusionOpticsWithout FusionOpticsWith FusionOptics

With FusionOptics

Full automation – full confidence: Leica M205 A

Do you have to perform repetitive tasks at the microscope that demand the highest precision and accuracy? Then you will love the fully automated Leica M205 A.

Its intelligent automation makes you run your processes with a few mouse clicks. You save time and gain confidence in your results.

Streamline your daily work flow

You can operate all of the functions of this high-performance stereo microscope via the user-friendly SmartTouch control unit or by the Leica software allowing you to work nearly hands-free.

Leica M205 A stereo microscope with FusionOptics and smart touch
Leica M205 A stereo microscope with FusionOptics and smart touch

Total recall of your settings

 Leica M125 CLeica M165 CLeica M205 C, Leica M205 A
Zoom12.5:116.5:120.5:1
Zoom Range8x –  100x7.3x –  120x7.8x –  160x
Resolution (1.0x)Resolution (max)432 lp/mm864 lp/mm453 lp/mm960 lp/mm525 lp/mm1050 lp/mm
Visible Structure Width579 nm551 nm475 nm
Max NA*0.2880.3020.35
Object Field∅ 28.8 mm – 2.3 mm∅ 31.5 mm – 1.92 mm∅ 29.5 mm –1.44 mm
Optical System100 % apochromatic, CMO, lead-free
Coded functionsZoom and iris diaphragm
ESD Rating2×1011 Ω/mm2discharge time <2 secondsfrom 1 000 V to 100 V
