กล้องจุลทรรศน์แบบสเตอริโอ ชนิด Greenough แบบ Apoachromatic ยี่ห้อ ไลก้า รุ่น Ivesta 3
See relevant details faster
In contrast to conventional stereo microscopes, Ivesta 3 features FusionOptics technology that unites high resolution and a large depth of field – at the same time!
- Save time refocusing as you can see every important detail at a glance. FusionOptics allows you to perceive your samples in 3D with up to 3x larger depth of field.
- Change from sample overview to detail easily with the microscope’s large 9:1 zoom range.
- Reveal fine details with a magnification of up to 55x and apochromatically corrected optics.
Image simulation, showing a printed circuit board sample without and with the FusionOptics effect, perceived when looking through the eyepieces.

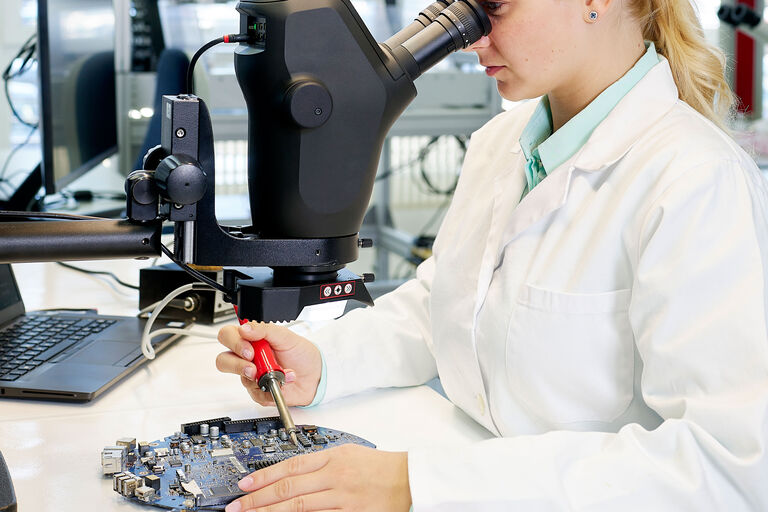

Freedom for your sample handling
Handle and manipulate your sample comfortably during inspection and rework – there is ample space under the microscope objective!
Ivesta 3 provides working distance of up to 122 mm
This is especially helpful if you need to use tools to work with the sample under the microscope objective – you know well that sometimes every mm counts.
Obtain reproducible results
With Ivesta 3 greenough stereo microscopes, you can work in compliance with standard procedures to achieve reproducible results and reduce the risk of human error.
Facilitate inspection and measurement
- Reproduce zoom settings through click-stops
- Know the zoom factor having it displayed during imaging
- Zoom factor and magnification information is saved automatically with the image data thanks to the encoded zoom
Collaborate for reliable decisions
- Enable fast and easy discussions of results to get other opinions: Fast display of live images from the 12-megapixel camera on a monitor.
- Visualize sample movements on the monitor clearly and smoothly thanks to the high frame rate of up to 60 fps.
- Switch between bright and dark samples quickly and clearly differentiate details with the displayed live image thanks to the fast auto exposure.
Make it your Ivesta 3
Find the best Ivesta 3 for your requirements:
- For inspection and rework only, but no camera for documentation is needed.
- With integrated camera: For digital image sharing directly on different devices, e.g., a monitor, mobile device, or computer.
- With C-mount: Gives you the flexibility to add a camera if needed and thus turn it into a digital microscope solution.
Consistent operation that saves you time
Any Ivesta 3 microscope with camera is powered by the Enersight software platform.
- Inspect, compare, measure, and share seamlessly on a single intuitive interface, regardless of how or where you do it.
- Reduce the need for training and supervision and make decisions as a team more easily.
Straightforward. Versatile. Trusted.
| Characteristics | Ivesta 3 | Ivesta 3 (C-mount) | Ivesta 3 (Integrated camera) |
| Optical system, lead-free | 10° Greenough using best-corrected central part of the objective | ||
| Zoom | 9:1 | ||
| Viewing angle | 35° | ||
| Magnification range * | 6.1x – 55x | ||
| Maximum resolution | 500 lp / mm | ||
| Maximum numerical aperture | 0,167 | ||
| Working distance * | 122 mm | ||
| Object field diameter * | 37.6 mm | ||
| Adjustable zoom limits * | Click-stops 10x, 20x, 30x, 40x and 50x | Click-stops 10x, 20x, 30x, 40x and 50x | Fully coded zoom |
| Video/photo outlet | – | 50 % video / 50 % visual, permanent | 50 % video / 50 % visual, permanent |
| Weight (camera only) | 1.6 kg | 1.8 kg | 2.2 kg |
| Standard objectives, lead-free | Apochromats 0.5x, 0.63x, 0.75x, 1.6x, 2.0x | ||
| Ergonomic eyepieces, fixed and adjustable, with cups | 10x/23, 16x/16, 20x/12 | ||
| Ergonomic eyepieces for eyeglass wearers, adjustable, with eyecups | 10x/23, 16x/15, 25x/9.5, 40x/6 | ||
| Interpupillary distance * | 50 mm – 76 mm | ||
| Operating temperature | 10 °C to 40 °C (50 °F to 104 °F) | ||
| Storage/Transport temperature | -10 °C to 50 °C (14 °F to 122 °F) | ||
| Relative humidity for storage / operation | 10 % – 90 % (non-condensing) | ||
| Use | For indoor use only | ||
| Pollution degree | 2 | ||
| Altitude operation | 0 m to 2,000 m (0 ft to 6,561 ft) | ||
| Live image on an HDMI monitor | – | – | at up to 60 fps (3,840 x 2,160 pixels) |
| Full-screen image capture | – | – | at 12 MP |
| Sensor diagonal | – | – | 7.81 mm (type 1/2.3″ CMOS) |
| Pixel size | – | – | 1.55 μm x 1.55 μm |
| Input | – | – | 5 V DC / 3 A |
| Power consumption | – | – | 15 W |
| Supported software | – | – | Enersight |
| Color filter | – | – | IR-cut coating 650 nm, not replaceable |
| File formats | – | – | JPG, TIF, BMP, MJPG; for overlays also PNG |
| Compatibility | – | – | USB 3.0, standard USB type C |
| High-definition connector | – | – | HDMI 2.0a, HDMI plug type A |
| USB connectors | – | – | 4x USB 2 connectors, type A |
| ON / OFF Button | – | – | 1x (on rear side of the microscope) |
| Multicolor status LED | – | – | 1x (on rear side of the microscope) |
*Values with basic outfit (no supplementary lens, 10x/23 eypieces) x = included, o = optional, – = not available
