Leica Biosystems - BOND-MAX Fully Automated IHC and ISH Staining System

Categories
Appliction
รหัสสินค้า
49.0051
รายละเอียดสินค้าโดยย่อ

Leica BOND-MAX คือเครื่องย้อมสไลด์แบบ อัตโนมัติเต็มระบบ (fully automated stainer) จากบริษัท Leica Biosystems ที่ออกแบบมาสำหรับการย้อมสไลด์ในกระบวนการ IHC (Immunohistochemistry) และ ISH (In Situ Hybridization) ซึ่งใช้กันอย่างแพร่หลายในห้องปฏิบัติการพยาธิวิทยา โดยเฉพาะในการวินิจฉัยโรคมะเร็งและโรคที่เกี่ยวข้องกับเซลล์หรือเนื้อเยื่อ

จุดเด่นของ BOND-MAX

  • Covertile System: ระบบครอบสไลด์เฉพาะของ Leica ที่ช่วยป้องกันการระเหยและลดปริมาณการใช้รีเอเจนต์

  • Three-Tray System: มีถาดแยก 3 ชุด ช่วยให้โหลด/ถอดสไลด์ได้ระหว่างรันงาน

  • เวลาทำงานเร็ว: เสร็จในรอบละประมาณ 3.5 ชั่วโมง เร็วพอสำหรับการรายงานผลภายในวันเดียว

  • รองรับรีเอเจนต์หลากหลาย: ทั้งจาก Leica และ third-party (ขึ้นกับการรับรอง)

  • เชื่อมต่อกับระบบ LIS: สำหรับการบริหารจัดการข้อมูลผลตรวจแบบอัตโนมัติ

Share:

DESCRIPTION

The compact solution that outperforms larger systems

โซลูชันขนาดกะทัดรัดที่ให้ประสิทธิภาพเหนือกว่าเครื่องขนาดใหญ่
เพิ่มประสิทธิภาพให้ห้องแล็บของคุณด้วย BOND-MAX ที่ยืดหยุ่น ประหยัดพื้นที่ และเร็วเกินคาด เครื่องรุ่นนี้มีขนาดกะทัดรัด วางบนโต๊ะได้ และมาพร้อมระบบถาด 3 ชั้นที่ออกแบบอย่างมีประสิทธิภาพและเป็นระเบียบ ช่วยให้คุณทำงานได้อย่างมั่นใจ ด้วยระยะเวลาการทำงานที่สม่ำเสมอเพียง 3.5 ชั่วโมง ต่อรอบ ช่วยให้คุณสามารถวางแผนงานประจำวันและทำเคสได้เร็วกว่าเมื่อเทียบกับเครื่องขนาดใหญ่

BOND-MAX ยังช่วยให้คุณรักษามาตรฐานคุณภาพที่เข้มงวดได้ ด้วยระบบ Covertile ที่อ่อนโยนต่อชิ้นเนื้อ และเมนูรีเอเจนต์ที่ครอบคลุมทุกความต้องการ ทั้งหมดนี้ได้รับการสนับสนุนโดยทีมผู้เชี่ยวชาญด้านวิทยาศาสตร์ วิศวกรรม และการผลิตของ Leica Biosystems ที่มีประสบการณ์สูง

ขนาดกะทัดรัด เหมาะกับห้องแล็บขนาดเล็กถึงกลางที่ต้องการระบบอัตโนมัติคุณภาพสูง

สามถาดแยกอิสระ, ทำงานต่อเนื่อง, รอบทำงานเฉลี่ย 3.5 ชั่วโมง

ระบบ Covertile + Liquid Sensor ทำให้ใช้รีเอเจนต์ประหยัด และรักษาชิ้นเนื้ออย่างปลอดภัย

รองรับ รีเอเจนต์ Novocastra RTU ครบชุด พร้อมต่อเชื่อมกับระบบอัตโนมัติระดับองค์กร

Get more from your lab with the flexible, efficient, and surprisingly fast BOND-MAX. This small-footprint, bench-standing instrument gives you the predictability you need, thanks to an efficient and organized three-tray system. With its consistent 3.5-hour run time, you can plan your day while completing cases faster than those running on larger systems.

BOND-MAX also helps you maintain your uncompromising quality standards, thanks to the gentle Covertile system and comprehensive reagent menu. All backed by expert support from Leica Biosystems’ highly experienced science, engineering, and manufacturing teams.

Make Every Inch of Your Lab Count

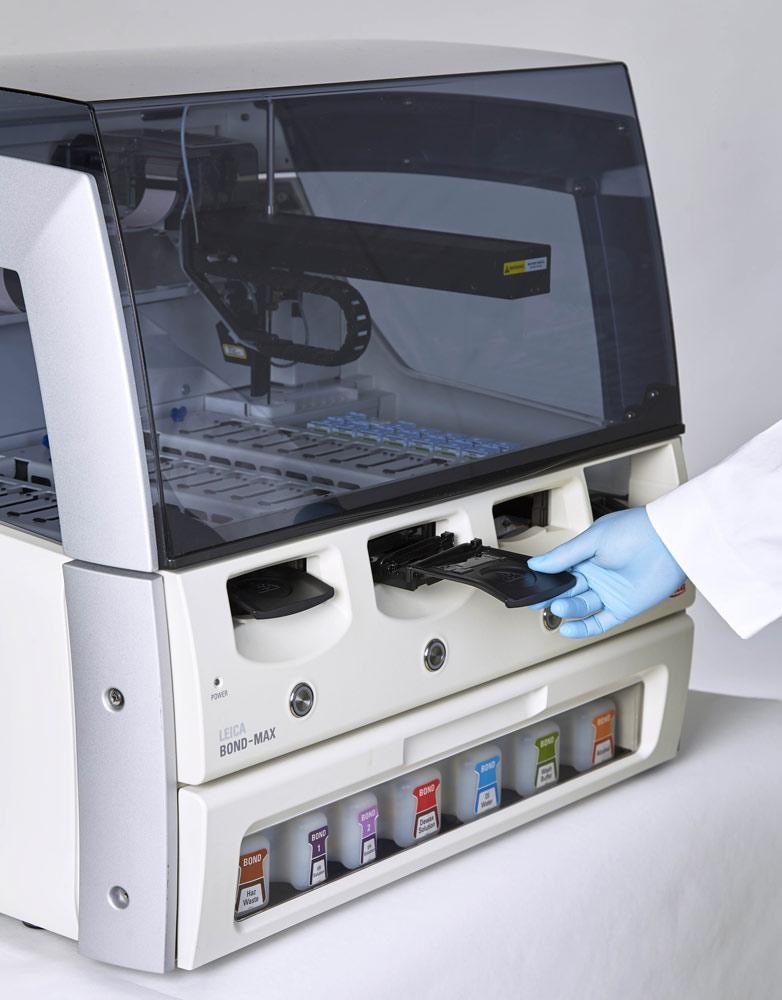

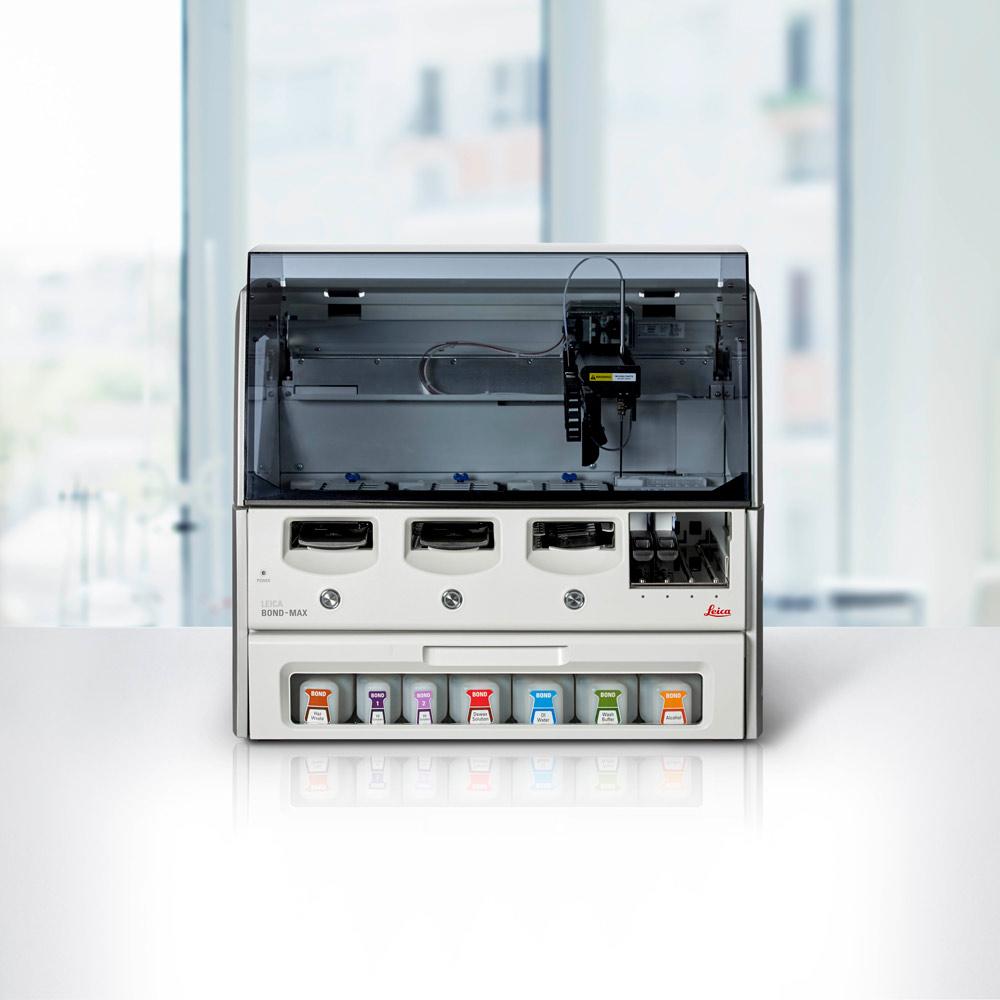

Meet the demands of ever-increasing slide volumes with the space you have. BOND-MAX is a bench-standing IHC/ISH stainer with a small footprint.
Ensure Quality. Use Low Volumes, and Reduce Waste

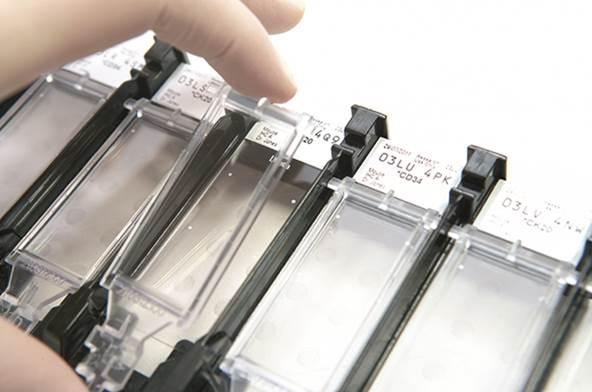

Supporting both 100 µl and 150 µl staining, the BOND Covertile ensures gentle and effective reagent application that protects tissue through the entire staining process.
Flexible, Efficient & Consistently Fast
The three-tray system, with consistent and predictable 3.5-hour run times, provides the flexibility to accommodate incoming workloads and the predictability needed for daily planning.
Each tray functions independently, allowing on-demand access and enabling you to load slides as they become available. Additionally, the system accommodates up to 29 antibodies (with detection loaded) and allows for easy swapping of antibodies without interrupting ongoing staining processes.
*When referring to IHC staining and running a batch workflow
Designed With the User in Mind

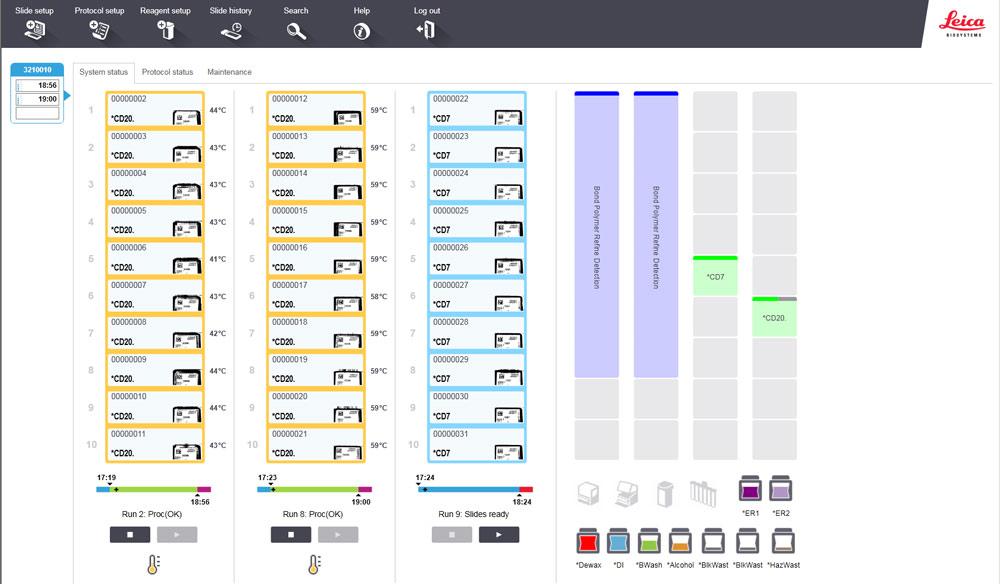

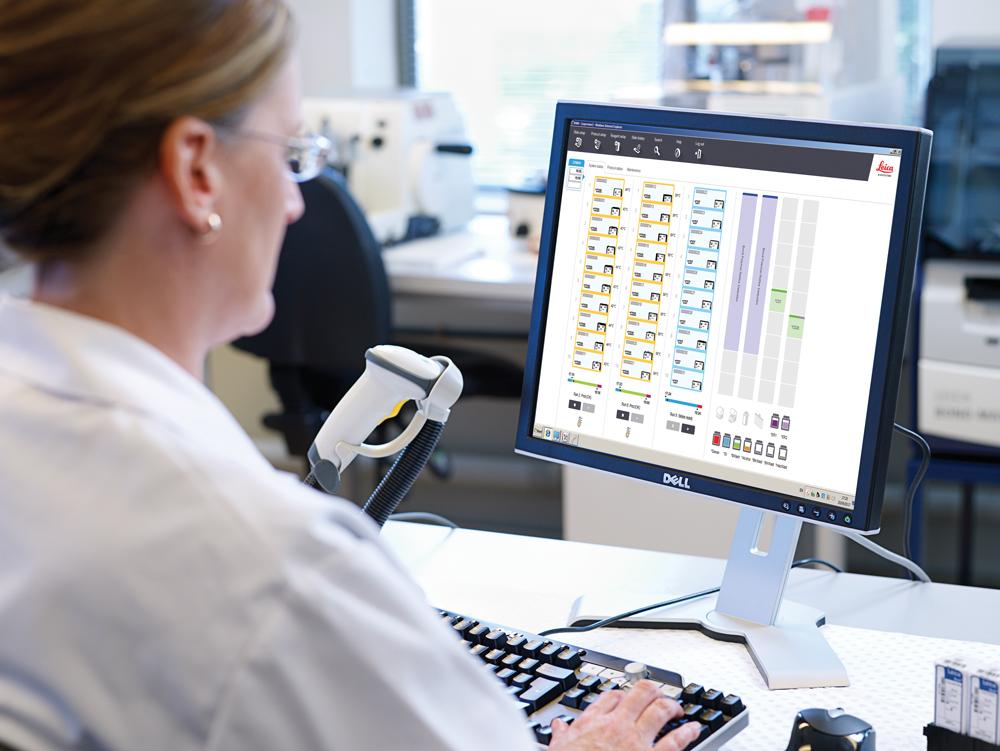

Usability is key to productivity, and instrumentation should support your lab environment. Interact with BOND-MAX on your terms, thanks to see-through bottles for on-the-fly capacity checks, continuous access to detection kits, antibodies, and probes as well as a highly visual, task-focused user interface.
Staining – With Confidence
The BOND Liquid Level Sensor measures reagent volumes before each dispense to ensure there is sufficient reagent for a full dispense onto every slide.
Grow Your Lab Your Way With BOND-ADVANCE
Don’t limit your productivity. Start with one BOND-MAX, finish with 30 BOND instruments, all on a single unified network.
Plus, BOND-ADVANCE
> Integrates into your existing LIS system
> Enables configurable work cells to match laboratory workflow
> Provides enhanced lab security through built-in redundancy

Product Specifications

DIMENSIONS & WEIGHT

Dimensions (W x H x D):760 mm x 703 mm x 800 mm
29.9 in x 27.6 in x 31.5 in
Weight (dry):120 kg (265 lbs)

OPERATING

Slide capacity:30
Finished trays (10 slides) may be replaced continuously
Number of reagent containers:36
Slide volume capacity:100 µL and 150 µL
Reagent container capacity:7 mL and 30 mL
Titration container capacity:6 mL
Bulk reagent container capacity:1 L or 2 L
Hazardous waste container capacity:2 L
Standard waste container capacity:9 L

ELECTRICAL

Operating voltage and mains frequency:90 V to 264 V (for nominal voltage 100 V to 240 V)
Power consumption:1000 VA
Mains frequency:50/60 Hz

ENVIRONMENTAL (UNPACKED INSTRUMENTS)

Maximum operating temperature:35°C (95°F)
Minimum operating temperature:5°C (41°F)
Temperature required to meet staining performance requirements:18–26°C (64–79°F)
Maximum heating energy output:1200W/1000W
Operating humidity (non-condensing):30 to 80% RH
Maximum operating Altitude:0 to 1600 m (5250 ft.) above sea level
Sound pressure level output (at 1 m):< 85 dBA maximum
< 65 dBA normal operation

MICROSCOPE SLIDES

Slide width:24.64–26.0 mm (0.97–1.02 in)
Slide length:74.9–76.0 mm (2.95–2.99 in)
Slide thickness:0.8–1.3 mm (0.03–0.05 in)
Label area width:24.64–26.0 mm (0.97–1.02 in)
Label area length:16.9–21.0 mm (0.67–0.83 in)
Material:Glass, ISO 8037/1
