The Aperio GT 450 scanner combines advanced technology and innovation, providing flexible scanning and automated workflows for efficient, high-quality results.
Key Features** and Benefits of the Aperio GT 450
- 40+ Patents: Supports flexible scanning requirements and automated workflows.
- 32-second scan speed: Output of 81 slides per hour at 40x* for fast scanning.
- Manual Scan: Adjust settings and re-scan slides for improved image quality.
- Extended Focus: Combines multiple layers for clearer images, reducing storage needs.
- Default Calibration Point: Ensures high-quality images by preventing image striping.
- DICOM Compatibility: 20x and 40x magnification with Z-Stack for detailed, clear images.
- Aperio iQC Software: Uses AI to detect artifacts and streamline the review process.
คุณสมบัติหลักและประโยชน์ของ Aperio GT 450
- สิทธิบัตรกว่า 40 รายการ: รองรับการสแกนที่หลากหลายและกระบวนการทำงานอัตโนมัติ
- ความเร็วในการสแกน 32 วินาที: สแกนได้ 81 สไลด์ต่อชั่วโมงที่กำลังขยาย 40x เหมาะสำหรับงานที่ต้องการความรวดเร็ว
- การสแกนแบบปรับเอง (Manual Scan): สามารถปรับตั้งค่าหรือสแกนใหม่ เพื่อปรับปรุงคุณภาพของภาพ
- ฟังก์ชัน Extended Focus: รวมภาพจากหลายชั้นความลึกเข้าด้วยกัน ทำให้ภาพคมชัดขึ้น ลดความจำเป็นในการจัดเก็บไฟล์ขนาดใหญ่
- จุดปรับเทียบภาพมาตรฐาน (Default Calibration Point): ช่วยให้ได้ภาพคุณภาพสูง และป้องกันปัญหาภาพเป็นเส้น (image striping)
- รองรับ DICOM: สแกนได้ทั้งกำลังขยาย 20x และ 40x พร้อมฟังก์ชัน Z-Stack สำหรับภาพที่ละเอียดและชัดเจน
- ซอฟต์แวร์ Aperio iQC: ใช้ AI ตรวจจับสิ่งแปลกปลอม (artifacts) และช่วยให้กระบวนการตรวจสอบภาพรวดเร็วและแม่นยำยิ่งขึ้น
Proven Technology for Researchers
Effortless scanning, exceptional results with excellent image quality, innovative technology and seamless integration – all driven towards faster turnaround time and accuracy for your important projects

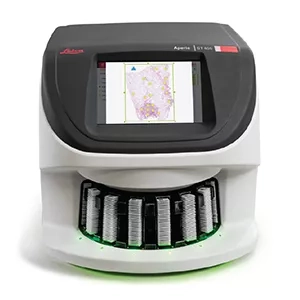

Manual ScanManual Scan
Delivering researchers with an efficient solution for variability in slide preparation, Manual Scan provides:
Faster slide delivery with immediate rescanning from the same location.
Quick resolution of image issues by lab technicians including faintly stained IHC slides, small tissue fragments, low density tissues etc.
High-quality slides from challenging tissues.
Streamlined workflow and improved lab efficiency.

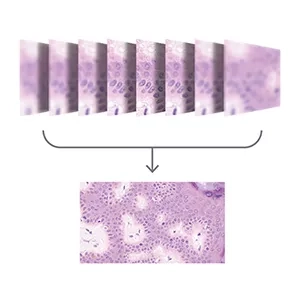

Extended Focus
Experience an efficient imaging solution that improves image quality while reducing storage needs. Extended Focus features include:
- Viewing all cells in focus on a single image, eliminating the need to scroll through layers.
- Smaller file sizes than Z-Stack images speed up file transfers, improving collaborative activities.
- Ideal in applications where thick specimens are viewed, which make the extended depth of field of images an issue to address.

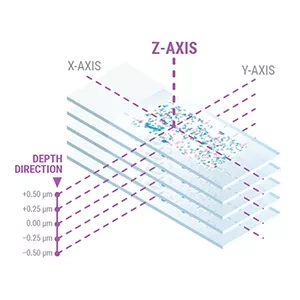

DICOM with 20x,40x and Z-Stack

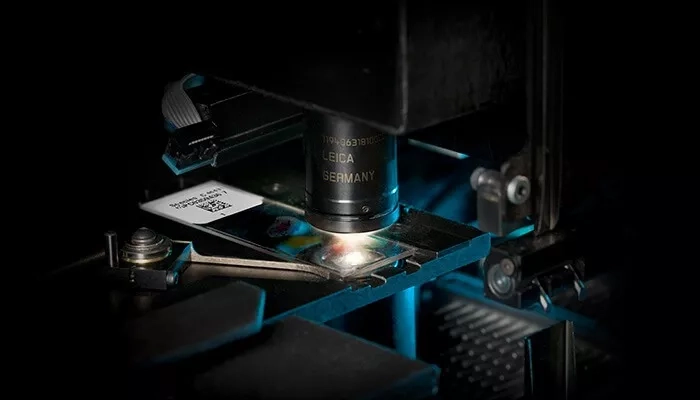

Aperio GT 450 uses a high-performance objective manufactured by Leica Microsystems, which has produced world-class optics since 1847. Leica optics deliver exceptional image quality
- Available alongside .svs, DICOM enables image clarity, improved collaboration and a streamlined workflow.
- 20x and 40x options for clear and detailed views of samples
- Z-Stacking enables the review of slide samples at varied heights
Precision, Potential to Scale, and Peace of Mind
Digital pathology scan speeds have not always been fast enough at 40x magnification to keep up with high-volume scanning (120k+ slides per year). Real-Time Focusing (RTF)** offers a potential solution to this problem. It’s a novel method to capture a digital image that combines an imaging line sensor and a focusing line sensor.
- While scanning, the focusing line sensor receives focusing data of the tissue.
- Proprietary algorithms determine the best focus value.
- Then, each best focus value is treated like a control loop with the mechanics, feeding the best focus value to the objective height on the fly.
- The positioning adjustments of the objective are performed continuously (in real time) in order to enable the imaging line sensor to capture the image at its best possible focus. Hence, real time focusing.

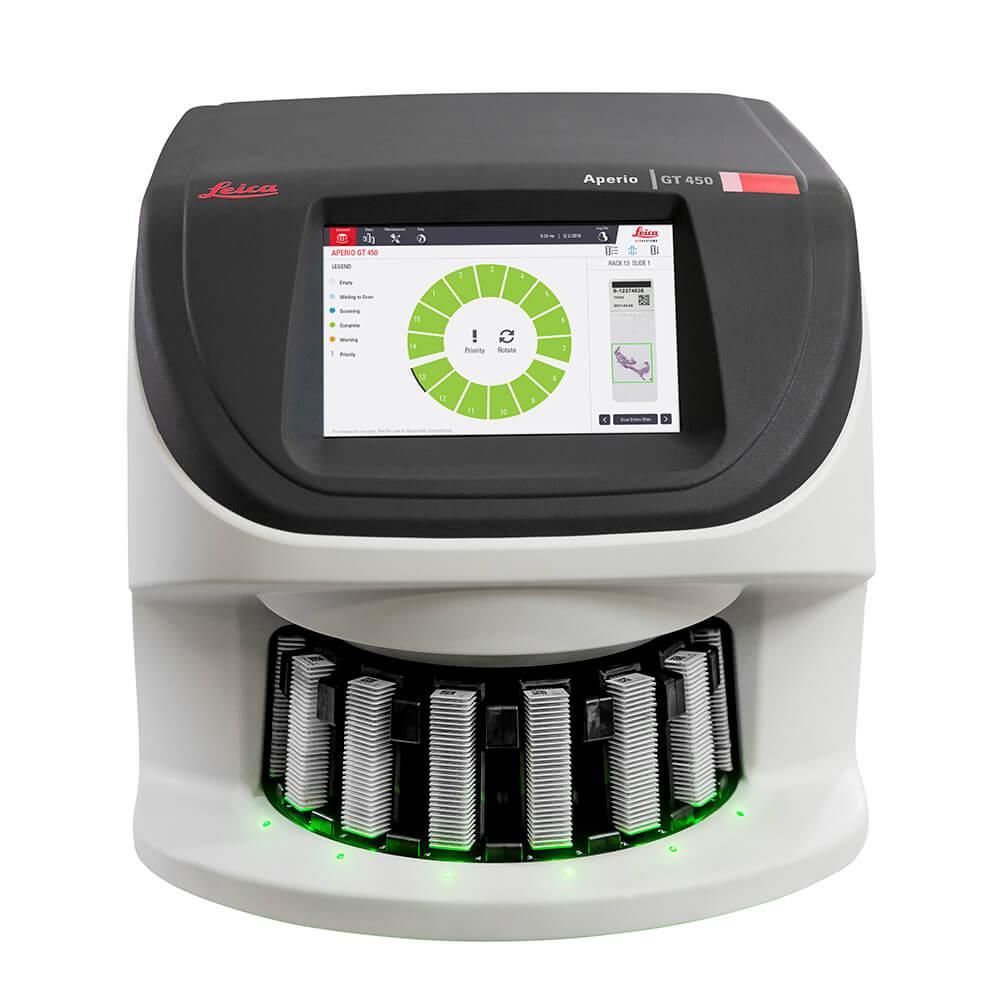

Aperio GT 450 Summary of Specifications
| Maximum Slide Capacity: | 450 |
| Rack capacity: | 15 racks of 30 slides, 15 racks of 20 slides |
| Racks compatible with Leica HistoCore SPECTRA Workstation: | Yes |
| Continuous rack loading while scanning: | Yes |
| Priority rack scanning: | Yes |
| Manual Scan: | Yes |
| DICOM compatible with 20x, 40x and Z-Stack: | Yes |
| Extended Focus: | Yes |
| Aperio iQC software: | Yes |
| Default Calibration Point: | Yes |
| Automated Narrow Stripe: | Yes |
| Z-Stacking: | Yes |
| Magnification: | 20x, and 40x |
| Resolution: | 0.26 μm/pixel at 40x |
| Scan speed (15mm x 15mm area at 40x): | 32 sec |
| Sustained throughput (15mm x 15mm area at 40x): | 81 slides/hr |
| Automated Image Quality Check: | Yes |
| Slide sizes accepted: | 1×3 |
| Field of View (FOV) | 1mm |
| Barcode engines: | 1D and 2D symbology |
| Dimension: | 20.8” (52.83 cm) W x 28” (71.12 cm) L x 19.5” (49.53 cm) H |
| Weight: | 140 lbs (63.5 kg) |
