ibidi : µ-Slide VI - Flat

ibidi - 80621, 80626

µ-Slide VI - Flat

µ-Slide ที่มี 6 ช่องแบบแบน สำหรับการทำการทดลองระยะสั้น



µ-Slide ที่มี 6 ช่องแบบแบน สำหรับการทำการทดลองระยะสั้น

  • Chamber แบบแบน 6 ช่อง สำหรับงาน immunofluorescence

A µ-Slide with 6 parallel channels for short term assays

  • A flat all-in-one chamber for immunofluorescence assays
  • Surface Modification: Uncoated: #1.5 polymer coverslip, hydrophobic, sterilized
    Pcs./Box: 15 (individually packed)
  • Surface Modification: ibiTreat: #1.5 polymer coverslip, tissue culture treated, sterilized
    Pcs./Box: 15 (individually packed)


  • Immunofluorescence assays using expensive or rare reagents
  • Cell-based short-time assays
  • Parallel screening of antibodies


Outer dimensions (w x l)75.5 x 25.5 mm²
Number of channels6
Total height1.5 mm
Channel volume30 µl
Channel height0.4 mm
Channel length17 mm
Channel width3.8 mm
Growth area0.6 cm² per channel
Coating area using 30 µl1.2 cm² per channel
Bottom: ibidi Polymer Coverslip

Technical Features

  • 30 µl test volume, which saves on reagent consumption
  • Compatible with multi-channel pipettes
  • No lid available; to maintain sterility for long-term assays, put the slide into a 10 cm Petri dish
  • Lettered and numbered channels
  • Also suitable with upright microscopes

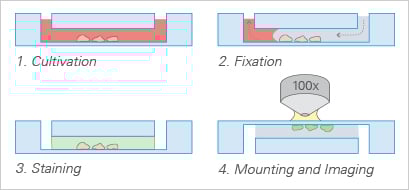

Easy Immunofluorescence Protocol

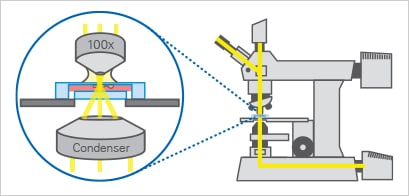

Also Suitable for use with Upright Microscopes

Experimental Examples

Live cell phase contrast microscopy of Rat1 cells on a Collagen IV surface.

Triple immunofluorescence staining of MDCK cells. Mitochondria: MitoTracker™ (red); F-actin: Phalloidin (green); nuclei: DAPI (blue).
