Leica - DMS300 Digital Microscope System

Leica - DMS300 Digital Microscope System
Leica - DMS300 Digital Microscope System
กล้องจุลทรรศน์ดิจิตอล ยี่ห้อ ไลก้า รุ่น Leica DMS300


กล้องจุลทรรศน์ดิจิตอล ยี่ห้อ ไลก้า รุ่น Leica DMS300

Leica DMS300 เป็นกล้องจุลทรรศน์ Digital ที่สมบูรณ์แบบ สามารถเชื่อมต่อ HDMI แทนกระบอกตา อัตรากำลังขยาย 8 ต่อ 1 ติดตั้งกล้องขนาด 2.5 ล้านพิกเซล สามารถแสดงภาพ Full HD ได้ 30 เฟรมต่อวินาทีสามารถถ่ายภาพคุณภาพสูงได้ โดยไม่ต้องเชื่อมต่อคอมพิวเตอร์ ทั้งหมดควบคุมด้วยระบบรีโมทไร้สาย และยังสามารถเลือกควบคุมผ่านคอมพิวเตอร์ด้วยโปรแกรม LAS EZ

Replaced by Emspira 3

The Leica DMS300 is a complete digital microscope system that utilizes a HDMI-monitor instead of eyepieces. Leica’s high quality 8:1 zoom optics are combined with a 2.5MP camera to provide a full high-definition live image with up to 30fps. The Leica DMS300 produces high-quality, full-color still images as well as Full-HD movies as a standalone system.

All primary functions of the DMS300 are controlled with a wireless remote control. Additionally, it can be connected to a computer offering full compatibility with Leica software LAS EZ. The dual live video stream allows for simultaneous output to a PC and a second imaging device with HDMI-interface such as a HD-monitors or HD-projector.

Another Dimension to Microscopy

Easy inspection and documentation

Many applications require us to work at higher magnifications so that we may inspect and sometimes document our work or products. Traditionally, this has been done using a standard stereo microscope and a digital camera. This approach produces 3-D-images which can be difficult for some users.

Leica now offers an alternative: a digital microscope system that combines first-rate optics and an advanced digital camera. This approach uses a HDMI-monitor, providing a 2-D-image instead of eyepieces to enable the user to view and document their work.

An Ergo-Friendly Working Environment

Work in complete comfort

The Leica DMS300 is inherently ergo-friendly. This is due to the completely digital output of the microscope – there are no eyepieces that need adjusting. The monitor can be quickly and easily adapted for several users helping to ensure that all operators maintain a proper and comfortable working posture. As a result, this setup can not only improve working conditions, but reduce work-related injuries due to uncomfortable working conditions.

Use Teamwork

A viewing device ideal for groups

Because the Leica DMS300 uses a monitor for the image output, several users can view the sample at the same time. This allows for fast and easy discussion of the item being viewed and can save time by making team decisions possible right away.

A digital microscope is also an ideal instrument for group instruction or teaching. Simply connect the HDMI-output directly to a HD-projector and you can share your observations with large groups of people. All this at a rapid frame rate of up to 30 frames per second – faster than the movies!

Fast Live Image

Faster than at the movies

The Leica DMS300 not only has superior optics, but also a built-in superfast CMOS-camera that provides high resolution live images in Full HD-resolution with up to 30 fps. Perfect pictures are extremely convenient – and necessary when working with digital microscopy as there are no eyepieces to work with. An image rate of 30 fps is even faster than most television images which have a frame rate of about 25fps. All this is made possible in a standalone system – there is no need for a computer.


Perfect combination of hardware and software

The Leica DMS300 can also be connected to any PC via USB2-cable and offers full compatibility with our user-friendly Leica LAS EZ software for basic measure capabilities. Leica LAS EZ comes free of charge and is shipped with the Leica DMS300.

Save time – work with overlays

Speed and accuracy for recurring tasks

Overlays are a simple trick that can help you effortlessly establish workflows for routine inspections. You can customize overlays easily to your specific needs, and superimpose different shapes or even text onto your live image. Watch this video to learn more.

Benefits of overlays in daily work routines

  • Step-by-step inspection workflows: Guide the operator with a sequence of overlays through the inspection. The DMS can read up to 99 overlays directly from SD card.
  • Fast go / no-go inspection: Quickly check if a part or component conforms to specifications or not.
  • Define inspection areas: In order to keep operators focused on a specific area on the sample you can mask-out details that are not relevant.
  • Tailored inspection protocols on SD-cards: Save sets of overlays specific to the inspection of a certain part on SD card. If parts change, simply change SD cards.

Get Connected

Standalone or with a PC

Optimized as a standalone system, the Leica DMS300 has:

  • A programmable button
  • An on/off switch
  • A user-selectable mode switch for PC or HD modes
  • A standard size USB-connector
  • A full-sized HDMI-connector for stability

The DMS300 is designed for ease of use and to be independent from a PC. You can take full advantage of this with the USB- and standard HDMI-connections. This allows you to either use a USB power supply and a HD-monitor, or connect directly to a computer.

What’s in the box …
… works out of the Box!

Easy to order, and setup

The DMS300 is a complete working digital inspection and imaging system. Everything you need to setup your digital microscope is included.

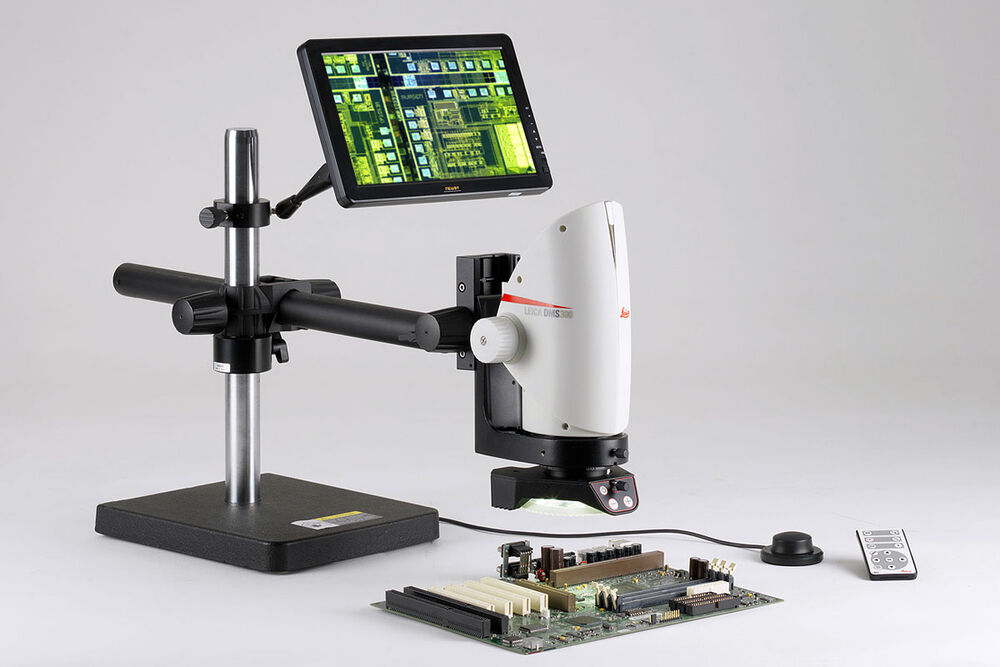

  • The Leica DMS300 zoom body with camera
  • A swing arm stand – ideal for viewing large or small samples
  • A LED-ring-light with diffuser, brilliant long-lasting light
  • A 0.8x objective provides enough magnification while allowing a working distance of over 110 mm
  • Two IR remote controllers – to customize the settings on the Leica DMS300 for standalone operation
  • SD-Card, USB- and HDMI-cables, plus a universal USB power supply
